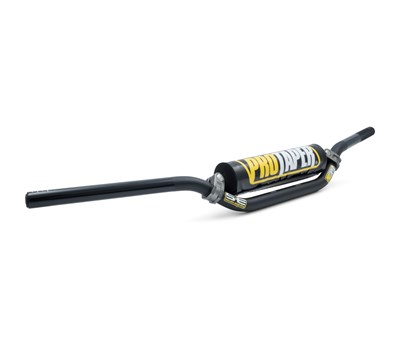

Pro Taper SE Handlebars

$73.95

SE Handlebars

The Seven Eighths (SE) Handlebar represents the state of the art in ⅞” handlebar design. Its 2000 series aluminum alloy construction and five millimeter-thick wall design, combined with its cold-forged crossbar and CNC machined clamps, make it perfect for riders who prefer solid, predictable feedback. SE Handlebars are available in bends to suit all bikes and riding styles, and come in five colors.

⅞” tubing at the clamping area
Exclusive 5 mm-thick 2000 series T6 aluminum alloy for superior tensile and yield strengths
Cold-forged aluminum crossbar
CNC machined 6061 aluminum crossbar clamps adhered with aerospace-quality polymer
High-tech shot peened, stress-relieved, and anodized finish for unmatched durability
Clutch side knurling provides maximum grip adhesion
Chemically applied cut lines and alignment grid are scratch- and peel-resistant
Plastic end plugs keep the elements out and provide a stronger base for grip ends
Weighs only 1.8 lbs. (816 grams) without pad
Handlebar pad included

SKU: PTSEHANDLEBARS

Categories: , ,

Tags: , , , ,

Description

MX Bend Black Platinum Silver Blue Red A
(Width)		 B
(Height)		 C
(Rise)		 D
(Clamp Area)		 E
(Sweep)		 F
(Control Area)
Carmichael 025296 025297 025295 – – 800 77 40 188 56 206
Henry/Reed 025242 025264 025220 025313 025312 800 92 60 225 57 186
Pastrana MX/RM Low 025249 025271 025227 – – 800 74 54 228 55 189
Windham/RM Mid 025250 025272 025228 025315 025314 800 99 69 243 54 189
Factory Suzuki/KTM Stock 025251 025273 025229 – – 800 92 61 233 47 190
CR Low 025243 025265 025221 – – 800 71 55 231 68 195
CR Mid 025244 025266 025222 – – 800 82 56 230 57 195
CR High 025245 025267 025223 025324 025323 800 95 67 233 60 186
KX Low 025247 025269 025225 – – 800 71 54 231 60 195
KX High 025248 025270 025226 – – 800 107 70 233 54 184
RM High 025252 025274 025230 – – 800 82 56 223 73 192
YZ Low 025253 025275 025231 – – 800 67 48 219 70 195
YZ High 025254 025276 025232 – – 800 84 53 222 52 195
SX Race 020214 020215 020216 020217 020218 800 87 54.5 216 54 195
ATV Bend Black Platinum Silver Blue Red A
(Width)		 B
(Height)		 C
(Rise)		 D
(Clamp Area)		 E
(Sweep)		 F
(Control Area)
ATV Low 025255 025277 025233 – – 813 140 88 228 84 206
ATV Mid 025256 025278 025234 – – 813 150 93 237 76 206
ATV High 025257 025279 025235 – – 813 160 104 236 100 199
Raptor 025293 025294 025292 – – 770 143 115 161 87 206
Trials Bend Black Platinum Silver Blue Red A
(Width)		 B
(Height)		 C
(Rise)		 D
(Clamp Area)		 E
(Sweep)		 F
(Control Area)
Trials Mid 025307 – 025306 – – 815 106 77 173 50 200
Trials High 025311 – 025308 – – 815 113 84 173 49 206
Mini Bike Bend Black Platinum Silver Blue Red A
(Width)		 B
(Height)		 C
(Rise)		 D
(Clamp Area)		 E
(Sweep)		 F
(Control Area)
Honda Mini 025258 025280 025236 – – 730 117 89 166 50 195
Kawasaki Mini 025259 025281 025237 – – 730 94 81 176 50 186
Suzuki Mini 025260 025282 025238 – – 730 102 80 172 50 186
Yamaha Mini 025261 025283 025239 – – 730 99 70 160 58 186
Schoolboy Low 025290 025291 025289 – – 715 78 51 137 47 195
Schoolboy High 025287 025288 025286 – – 715 88 61 144 45 195
Schoolboy Pro 025381 025282 025280 – – 745 80 72 200 52 200
KTM50 025263 025285 025241 – – 648 80 72 157 44 167

Additional information

Weight 22 oz
Bend/Color

Schoolboy Pro-Blk
