Description
1⅛” tubing at the clamping area
Used by top professional riders and race teams like Rockstar Energy Husqvarna Factory Racing, GEICO Honda, and JGR Yoshimura Suzuki Factory Racing

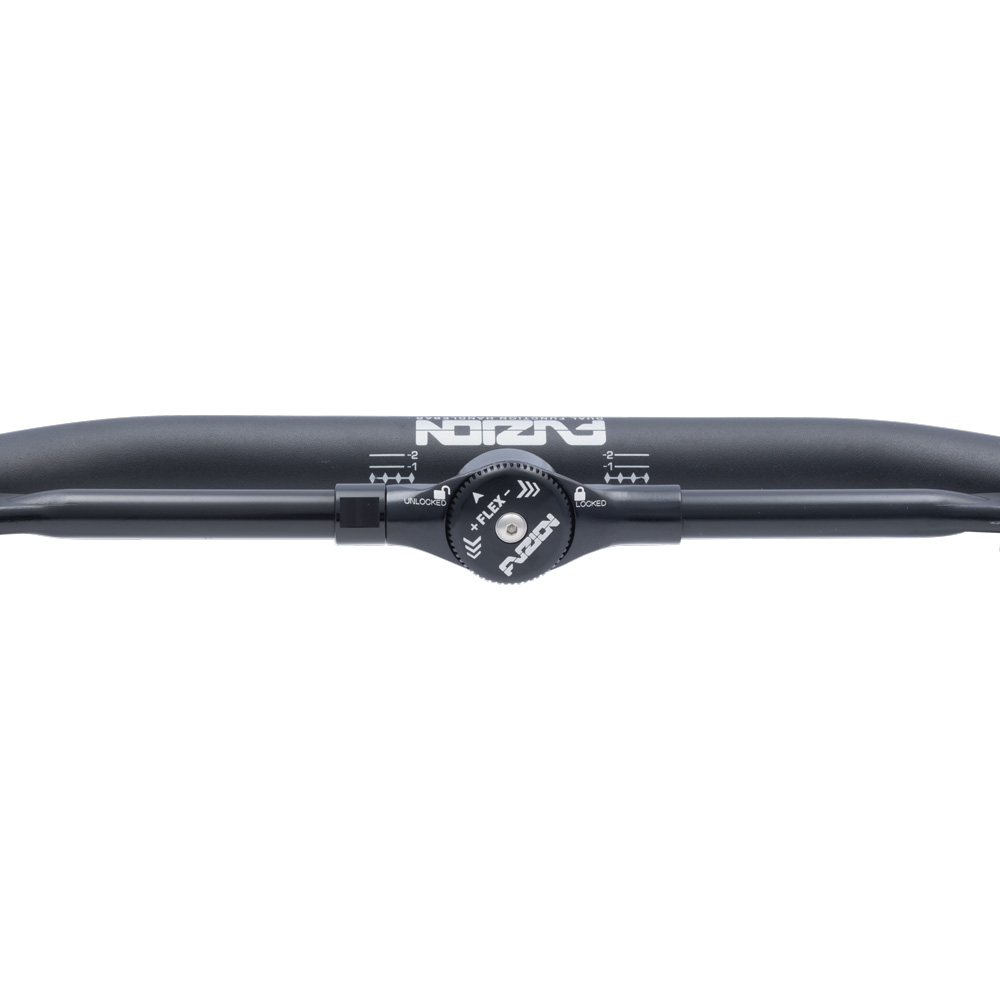

“Unlocked” function allows crossbar to telescope, increasing handlebar flex
“Locked” function connects the crossbar, creating solid, predictable feedback for the rider
Exclusive 5 mm-thick 2000 series T6 aluminum alloy offers superior tensile and yield strengths
Cold-forged aluminum crossbar
CNC machined 6061 aluminum crossbar clamps adhered with aerospace-quality polymer
High-tech shot peened, stress-relieved, and anodized finish for unmatched durability
Clutch side knurling provides maximum grip adhesion
Chemically applied cut lines and alignment grid are scratch- and peel-resistant
Plastic bar end plugs keep the elements out and provide a strong base for grip ends
Weighs only 2.1 lbs. (953 grams) without pad
Handlebar pad included
| MX Bend | Black | A (Width) |
B (Height) |
C (Rise) |
D (Clamp Area) |
E (Sweep) |
F (Control Area) |
|---|---|---|---|---|---|---|---|
| Carmichael | 028958 | 800 | 77 | 36 | 195 | 55 | 210 |
| Henry/Reed | 028959 | 800 | 92 | 61 | 206 | 57 | 182 |
| Windham/RM MID | 028960 | 800 | 99 | 70 | 219 | 53 | 180 |
| CR HIGH | 028961 | 800 | 95 | 67 | 204 | 60 | 180 |
| YZ HIGH | 028962 | 800 | 84 | 53 | 202 | 52 | 190 |
| SX Race | 028963 | 800 | 87 | 54.5 | 216 | 54 | 195 |
